Chilwee Series high energy VRLA Battery is specially designed based on Graphene Technology, which has obviously improve the battery's capacity, output power, cycle life and high/low temperature performance. The Chilwee Grey Series provides longer range, larger power and extremely long life for motive power applications, i.e. electric bicycles, electric tricycles, electric motorcycles and other device require DC power source.
FEATURES & BENEFITS
* Designed based on Graphene Technology enables the BG Grey series Battery with the the features of excellent long range, larger power and extremely long life.
* Unique structure of battery container and lid to ensure excellent gas recommendation efficiency, less gas released so that water loss rate is reduced.
* Sepcial grid alloy material and special lead paste prescription have been utilized to resist corrosion on plates, prolong the life of the battery
* Increased positive active material to improve the battery's initial capacity and service life
* Redesigned battery container and terminal, more attractive appearance and easy for installation.
Nominal Voltage (V) 12V
Open Circuit Voltage (V/Block) 13.1V - 13.45V
Number of Cells (Per Block) 6 Cells
Nominal Weight (Kgs) Approx. 7.17 Kgs
Dimension (L X W X H, Total Height. mm) (181mm±0.5) X (78mm±0.5) X (172mm±0.5), (172mm±0.5)
Dimension 7.15 x 3.1 x 6.8 inches
Container Material Enhanced ABS Float (V/Block) 13.50V - 13.80V Cycle (V/Block) 14.60V - 14.80V
Maximum Discharge Current (A) 150A (5s)
Maximum Charge Current (A) 2.9 A
Operation (maximum): -20℃ to 50℃
Operation (recommended): 20℃ to 30℃
Storage Temperature(℃) -20℃ to 50℃

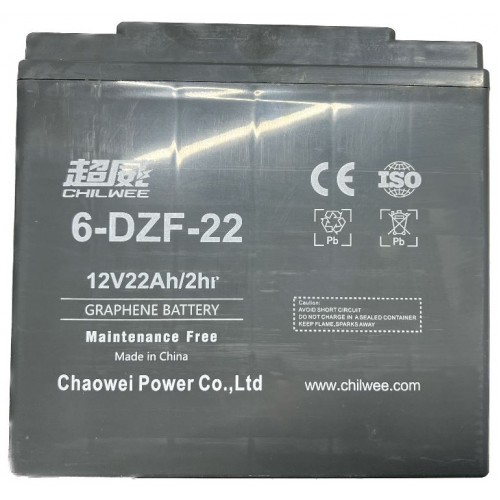

Battery 12 volts, 22.3 ah/2hr, CHILWEE
- Product Code: 6-DZF-22 Gris
- Availability: In Stock
- 79.95$
-
70.00$
-
- 4 or more 69.75$
- 5 or more 68.00$
